Pulveriser Machine For Fine Powder

Pulveriser Machine For Fine Powder

NP ROTOPLAST offers high speed mixture machine for mixing granules with masterbatch pigments paste or powder form. With blending material heated up to predefined temperature to remove moisture from the raw materials & allow equal mixture of granules & masterbatch.

Pulveriser machine is suitable for LLDPE, HDPE, RPVC, MASTERBATCH & powder coating.

Feature

  • Uniform and smooth powder size
  • Metal detector to detect metal parts from polymer arrange optional on request.
  • Auto tripping system for over feeding to hopper
  • Indicator put on low level for hopper
  • Temperature sensor provision in mill body to stop machine while overheating.

Optional Attachment

Pneumatic hopper loader -unloader, chiller or cooling tower, servo feeder system.

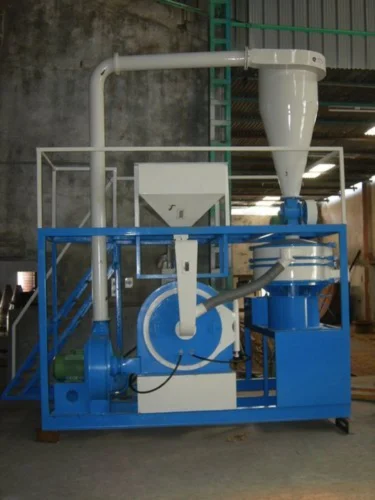

Plastic Pulveriser Machine
MODEL NO. MAIN MOTOR (HP) OUTPUT (KG/HOUR) VIBRO MACHINE SIZE (mm) LXWXH
NP-PPM-300 30 100-120 32″ 2300 X 1550 X 3200
NP-PPM-400 40 150-180 38″ 2600 X 1650 X 3600
NP-PPM-600 60 220-25 48″ 3600 X 1900 X 4100
  • Output production depends on types of polymer like LDPE,LLDPE,HDPE,PVC,PP &MASTERBATCH.
  • Suitable pellet size is 5 to 8 mm
    		•
