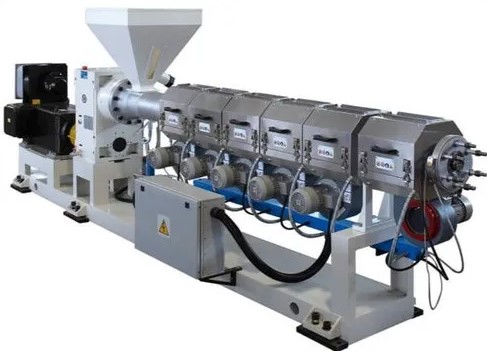

Extruder Machine
- NPRP Extruder uses for good quality of colouring, compounding & Recycling material,
- barrel & screw Material will be EN41-B with gas nitriding,
- Uses special type Heaters with fully covered to ensure safety and smooth working,
- Temperature can be controlled with microprocessor-based control panel with digital display,
- Air knife for moisture free strand & Efficient cooling of pallets or strand,
- Arrange optional accessories on request Hopper loader, die face cutter cooling tower or chiller & PLC.
| Plastic Extruder Machine | ||||
| MODEL NO. | SCREW DIA. | ELECTRIC MOTOR (HP) | OUTPUT (KG/HOUR) | MACHINE SIZE (mm) LXWXH |
| NP-PEM-70 | 70MM | 15 | 80-100kg/hr. | 6650 X 1200 X 1550 |
| NP-PEM-100 | 100MM | 25 | 120-150kg/hr. | 7800 X 1200 X 1550 |
| NP-PEM-200 | 110MM | 40 | 180-200kg/hr. | 8500 X 1500 X 1800 |
